FP125LCZAANPJFSN

产品型号:FP125LCZAANPJFSN
所属类别:FFC/FPC系列 / 1.25mm pitch

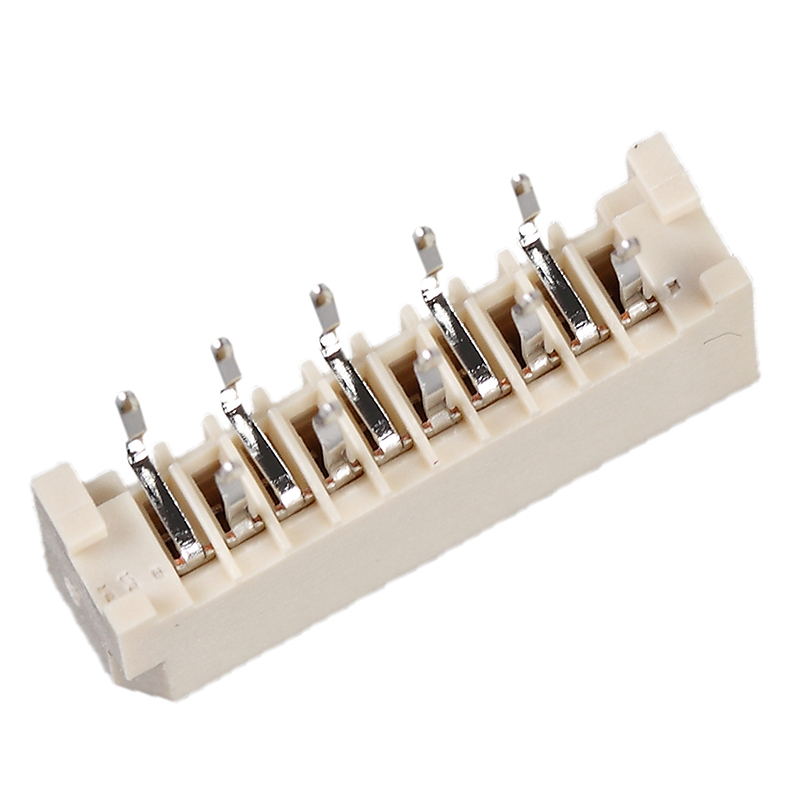

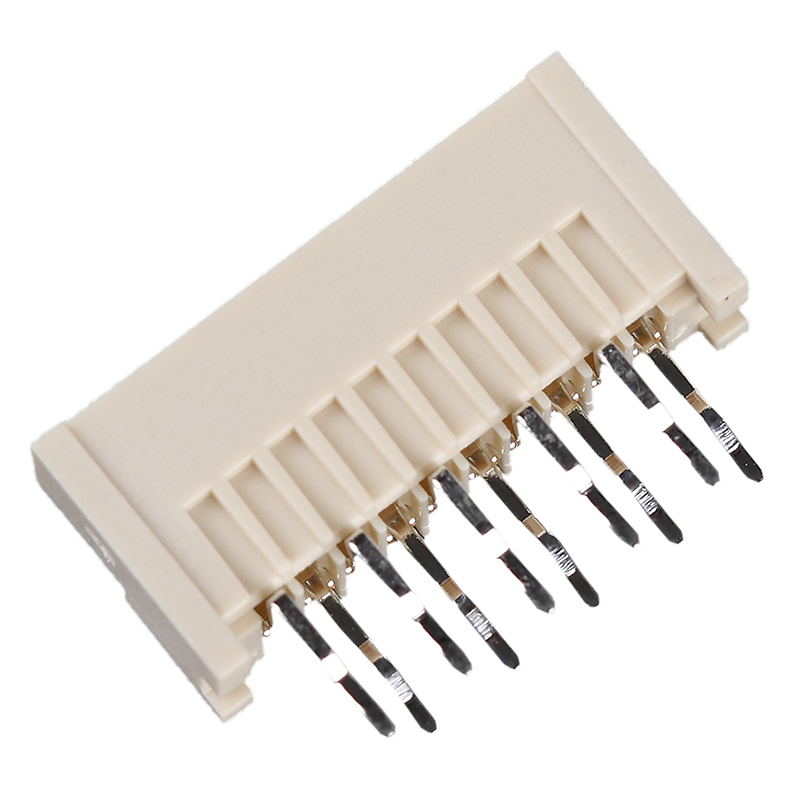

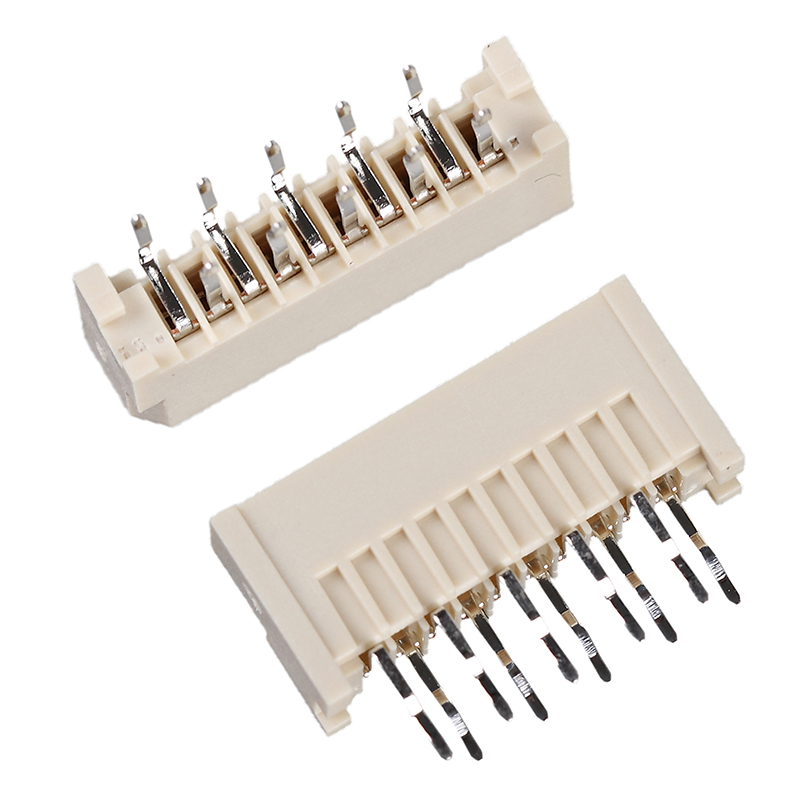

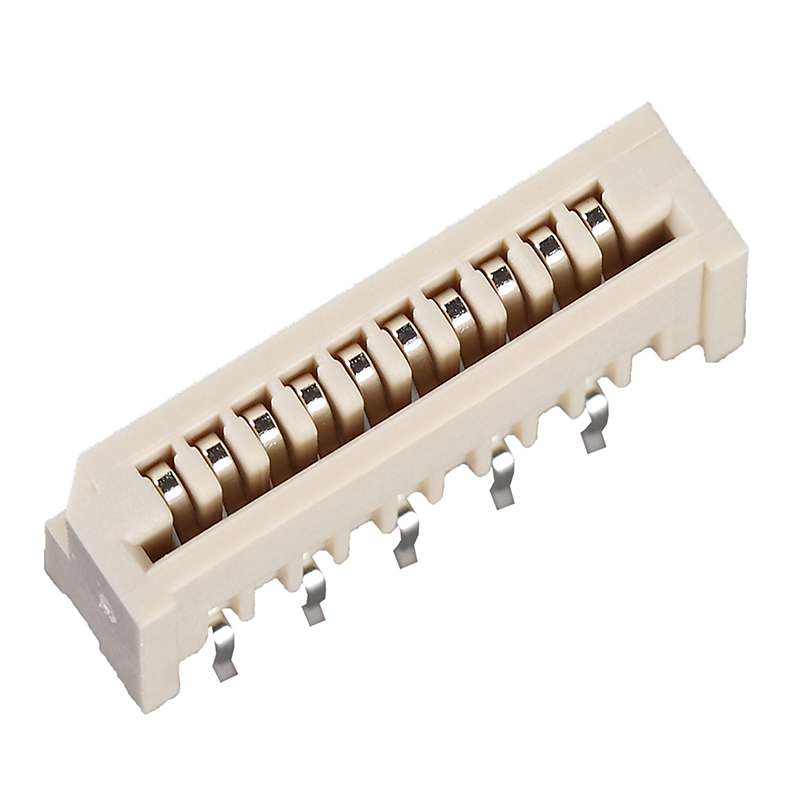

产品名称:Pitch 1.25mm  FPC 连接器

1.25-A Series  1.25mm FPC CONN .NON-ZIF Straight,DIP,H=7.5
间距(Pitch):1.25mm
线数(Poles):16
额定电流(Current rating):1AMP
绝缘电阻(Insulation resistance):≥500MΩ
接触电阻(Contact resistance):≤0.03Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):125V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):C5191 磷铜
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
